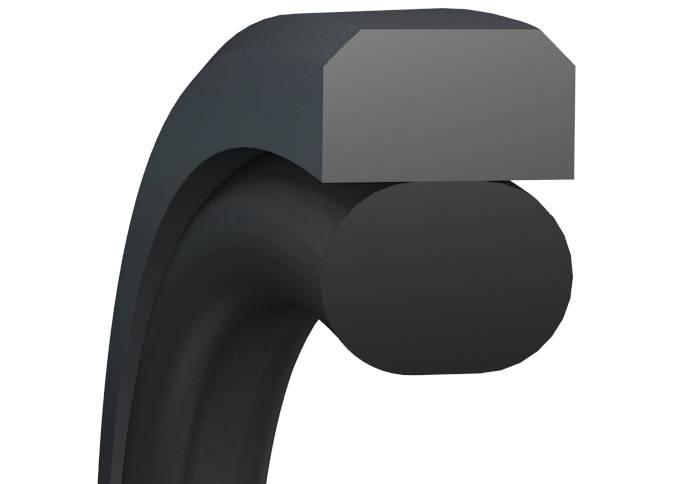

Glyd Ring

Glyd Ring is a very effective and reliable low frictional seal. It is particularly suitable as a piston seal in both high and low pressure systems. It comprises a PTFE ring, strengthened with additives to resist creep, which is pre-loaded by an O ring to be effective for the operating pressure range recommended. As the pressure rises the O ring deforms and compresses the PTFE ring against the tube wall increasing the sealing force and the effectiveness of the seal. As only the PTFE ring is in contact with the sliding surface, friction is very low and stick-slip movement is eliminated.

The geometry of the Glyd Ring ensures a good static sealing and allows the lubricating hydrodynamic oil film to be built under the seal in reciprocating applications.

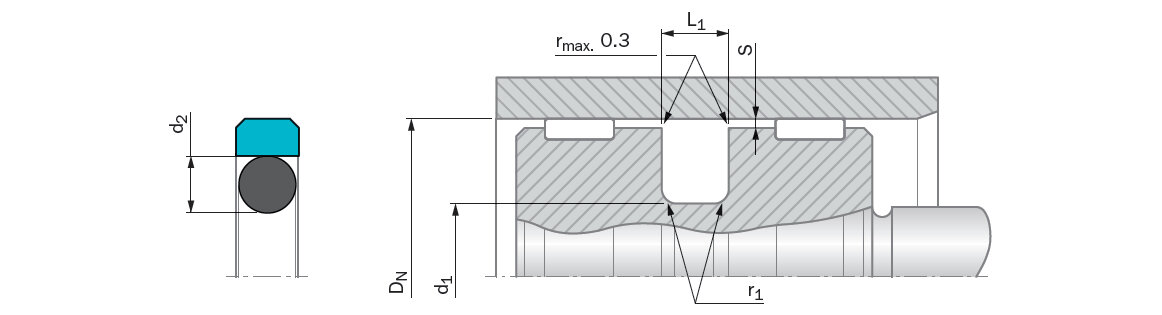

Technical Drawing
