Chevron Packing

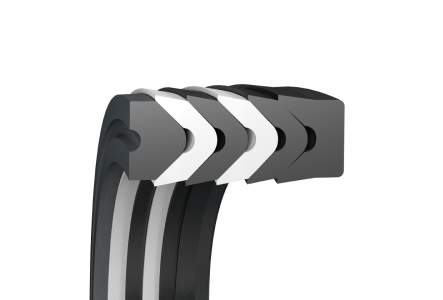

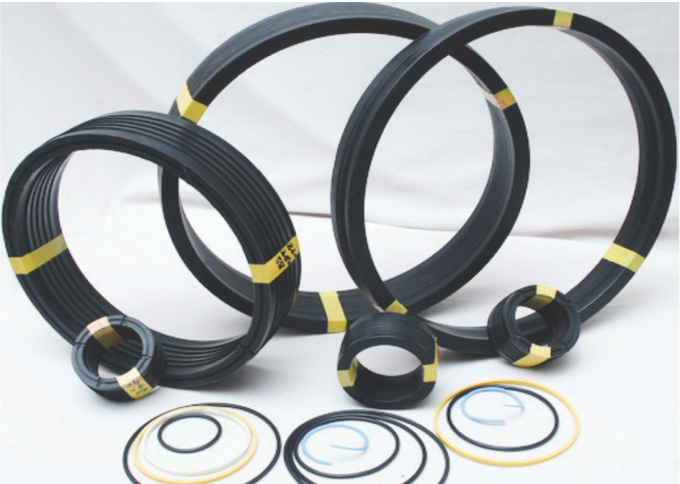

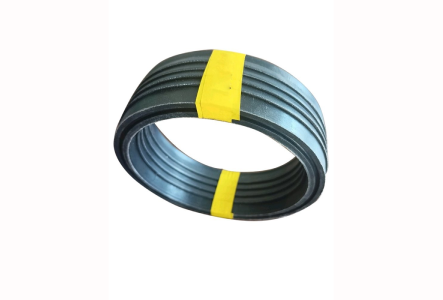

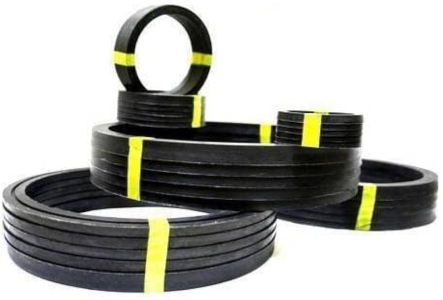

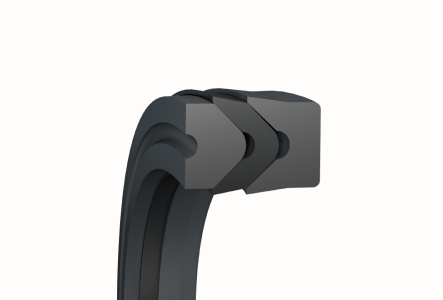

Extremely suitable for medium duty to heavy duty application. Chevron seal accepts low & high pressure, vigorous conditions & also if any misalignment between sealing gaps. The seal is a combination of a Gland Ring, center V-Ring & pressure ring or header. The center ring is the main seal being flexible enough to retain high & low pressure, whereas the base seal support the center ring from getting extruded against high pressures. The pressure ring helps in retaining the center ring profile& distributing pressure equally. We manufacture high quality chevron type seals that have an extremely wide application. These seals are manufactured from canvas impregnated with Nitrile/Viton rubber which is used in the form of set consisting of top and bottom rings. The number of V-rings in a set is variable and depends upon the pressure to be sealed. These seals can withstand a pressure upto 10,000 PSI.

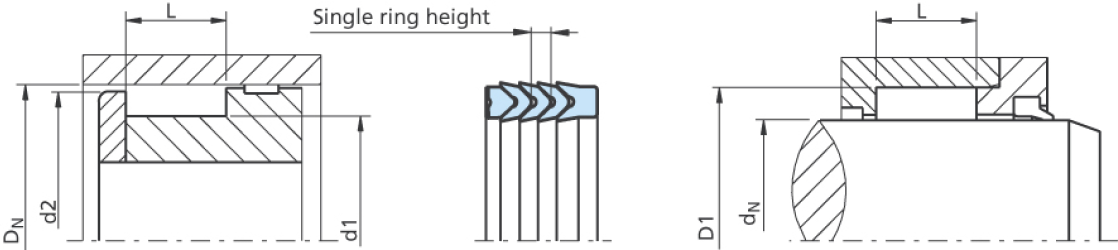

Technical Drawing
